4 Layer Multilayer PCB Circuit Board for Medical Electronics Rogers RoHS

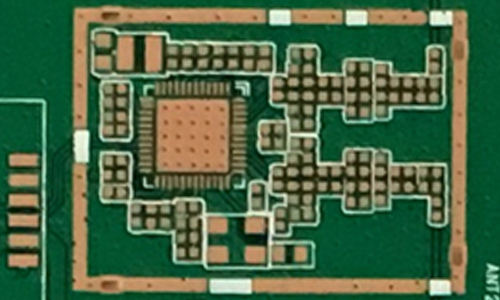

The layer count of the PCB Circuit Board is 4 Layers, and it was made with FR - 4 board material, with only 1.0 mm board thickness. Also, the board size of this PCB Circuit Board is 46 * 40 mm, with green solder mask and OSP surface treatment.
What We Can Do for You?
With over 18 years experience, we offer OEM & ODM PCB Layout, PCB Design, PCB manufacturing and
PCB Assembly in single-sided PCB Board, double-sided PCB and Multilayer Printed Circuit Board service to
our customers, with total production capacity of 290,000 sqm/month.
How to get quick quotation?
| Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc |
| Step 2 Also please provide us the below details for quick quotation: |
|
Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others
|
| Material brand: SY / KB / Rogers (optional) |
| Material Specification:High Tg / copper based / aluminum based or others (optional) |
| Board thickness: 0.1 - 6.0 mm |
| Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um ) |
| Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin |
| Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc |
| Board size and quantity |
|
If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.
|
|
SAMPLE:
|
|
Board Basic Info - SAMPLE
|
|
Board material
|
Fr - 4
|
|
Material brand
|
KB
|
|
Material Specification
|
Tg 170
|
|
Board thickness
|
1.6 mm
|
|
Copper thickness
|
1 Oz
|
|
Surface Treatment
|
ENIG
|
|
Solder mask / sSilk print
|
Green / White
|
|
Board size
|
100 mm * 100 mm
|
|
Quantity
|
10k
|
|
Lead Time
| Layer count |
Sample lead time/workday |
Batch lead time/workday |
| 1-2L |
2 |
6 |
| 4L |
5 |
8 |
| 6L |
5 |
9 |
| 8L |
6 |
10 |
| 10L |
8 |
10 |
| 12L |
8 |
12 |
| 14L |
10 |
15 |
| 16L |
10 |
18 |
| 18-40L (Up to difficulty) |
at least 18 |
at least 24 |
| P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays |
Why you can trust our products?
-- What LEFANG's vision is to Make Our Customer's Products Better, so we try our best to fulfill the quality control
system andenvironmental management system. Our approved certification are as below:
| ISO9001:2008 |
ISO14001:2004 |
| ISO/TS16949:2009 |
OHSAS18000 |
| UL |
RoHS |
| QC080000 |
CQC |
Now send us your inquiry, and you will be replied within 8 hours!
Little knowledge - PCBA-PCB Board Assembly
PCBA (Printed Circuit Board Assembly) is the board that mounting various components like resistors, ICs (Integrated Circuits), capacitors, transformers and any other components which depending on the application and desired characteristics of the board.
PCB Assembly is a process that requires knowledge including PCB components, assembly, printed circuit board design and PCB fabrication; also you must have deep and thoroughunderstanding of the final product. Circuit board assembly is just one piece of the puzzle to deliver the perfect product the first time.
