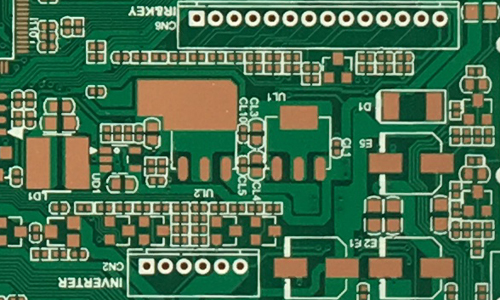

Heavy Copper Rigid Dual Layer Pcba Board , Air Conditioner Pcb Board 1.0 Mm

Name: Heavy Copper Rigid Dual Layer Pcba Board Air Conditioner Pcb Board 10 Mm
Brand: LEFANG
Price: 1 USD

Buy cheap Heavy Copper Rigid Dual Layer Pcba Board , Air Conditioner Pcb Board 1.0 Mm product

Brand Name : LEFANG

Model Number : RM0002L046

Certification : ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000

Place of Origin : Shenzhen,China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal, MoneyGram

Supply Ability : 290, 000 sqm Per Month

Delivery Time : 2-10 work days

Packaging Details : Inner: Vacuum Packing; Dry Packing out Packing

Raw material : Fr - 4

Layer count : 2 Layer

Board thickness : 1.0 mm

Copper thickness : 1.5 Oz / 52.5 µm

Surface treatment : OSP

Solder mask : Green

Board size2104 * 105 mm4.56 * 58.83 mm : 244.5 * 90 mm

Min. Aperture : 0.2 mm

Line Trace Width/Space : 0.15 / 0.13 mm

Contact Now

HASL Rigid Printed Circuit Board with Green Solder Mask Double Sided PCB

The heavy copper double sided PCB Board is made with FR4 Board material with 1.5 Oz / 52.5 µm copper thickness. Also, the board size of this Multilayer PCB Board is 244.5 * 90 mm, with green solder mask and OSP surface treatment.

Why choose LEFANG?

-- Lefang provides One-Stop solution to save your cost and time.

Quick Quotation - Competitive factory price is always offered

Free Sample - Sample for free before mass production

Quality Control - Sales Team monitors the production quality and lead time

On Time Delivery - Customize the logistics plan according to customer’s requirement

After-sale Service - Reply to the claim within 24 hours to make sure our customer’s manufacturing

How to get quick quotation?

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc

Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others

Material brand: SY / KB / Rogers (optional)

Material Specification:High Tg / copper based / aluminum based or others (optional)

Board thickness: 0.1 - 6.0 mm

Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )

Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin

Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc

Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE
Board material	Fr - 4
Material brand	KB
Material Specification	Tg 170
Board thickness	1.6 mm
Copper thickness	1 Oz
Surface Treatment	ENIG
Solder mask / sSilk print	Green / White
Board size	100 mm * 100 mm
Quantity	10k

Lead Time

Layer count	Sample lead time/workday	Batch lead time/workday
1-2L	2	6
4L	5	8
6L	5	9
8L	6	10
10L	8	10
12L	8	12
14L	10	15
16L	10	18
18-40L (Up to difficulty)	at least 18	at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

What kinds of test function will be offered?

AOI (Automated Optical Inspection)	Impedance control
Automatic short-circuit testing	Metallographic microscope
RoHS detector	Fly probe/ fixture mold
Dielectric tester	Visual inspection

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - PCBA-PCB Board Assembly
PCBA (Printed Circuit Board Assembly) is the board that mounting various components like resistors, ICs (Integrated Circuits), capacitors, transformers and any other components which depending on the application and desired characteristics of the board.
PCB Assembly is a process that requires knowledge including PCB components, assembly, printed circuit board design and PCB fabrication; also you must have deep and thoroughunderstanding of the final product. Circuit board assembly is just one piece of the puzzle to deliver the perfect product the first time.
