OSP Copper Base PCB Single Layer PCB Fabrication White Solder Mask For Power Board

Name: OSP Copper Base PCB Single Layer PCB Fabrication White Solder Mask For Power Board
Brand: LEFANG
Price: 1 USD

Buy cheap OSP Copper Base PCB Single Layer PCB Fabrication White Solder Mask For Power Board product

Brand Name : LEFANG

Model Number : RM6001L386

Certification : ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000

Place of Origin : Shenzhen,China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 290, 000 sqm Per Month

Packaging Details : Inner: Vacuum Packing; Dry Packing out Packing

Delivery Time : 2-10 work days

Base Material/ Dielectric : Copper base

Layer : 1 Layers

Surface treatment : OSP

Board thickness : 2.0 mm

Solder Mask : White

Min. Aperture : 2.0 mm

Line Width/Spacing : 0.6 / 0.6 mm

Size : 105*36 mm

Contact Now

White Solder Mask Single Sided OSP Copper Base PCB Board for Power Board

The 1 layer single sided Copper Base PCB is applied for electronics power board, with 2.0 mm board thickness. The specification of the high TG PCB board is 111.15 * 105*36 mm, with OSP surface treatment. The minimum aperture is 2.0 mm and white solder mask.

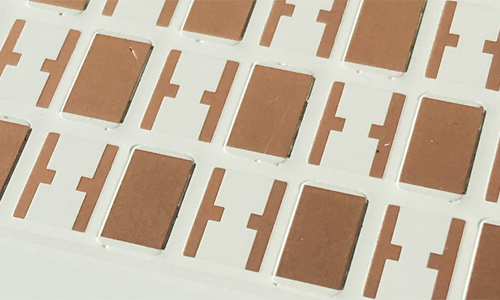

OSP Copper Base PCB Single Layer PCB Fabrication White Solder Mask For Power Board

How to get quick quotation?

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc

Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others

Material brand: SY / KB / Rogers (optional)

Material Specification:High Tg / copper based / aluminum based or others (optional)

Board thickness: 0.1 - 6.0 mm

Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )

Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin

Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc

Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE
Board material	Fr - 4
Material brand	KB
Material Specification	Tg 170
Board thickness	1.6 mm
Copper thickness	1 Oz
Surface Treatment	ENIG
Solder mask / sSilk print	Green / White
Board size	100 mm * 100 mm
Quantity	10k

Technical Data

No.	Item	Data
1	Layer count	1-20 layers
2	Raw material type	Halogen free FR-4, high Tg FR-4, thick copper FR-4, CEM-3, copper based, aluminum based
3	Raw material brand	Rogers,Isola,Arlon, ITEQ, Hitachi, SY, KB,etc
4	Board thickness	0.1-6.0mm
5	Max board size	600 mm * 700 mm
6	Solder mask	Green, red, blue, black, white, yellow
7	Surface treatment	HASL/HASL lead free , OSP, Immersion gold / silver / tin , gold plating (hard gold and soft gold), silver plating, tin plating, platinum plating, carbon ink, and ENEPIG(electroless nickel - electroless palladium - immersion gold)
8	Copper thickness	0.05 Oz - 8 Oz (17 um-288 um )
9	Min Line width /space	0.065 mm / 0.065 mm
10	Finished hole size	0.10 - 5.95 mm
11	Blind/buried via	0.10 mm
12	Aspect ratio	10:1
13	PTH tolerance	+ / - 0.05 mm
14	Hole location tolerance	+ / - 0.05 mm
15	Impedance control tolerance	+ / - 8% mm
16	Outline tolerance	+ / - 0.10 mm

Lead Time

Layer count	Sample lead time/workday	Batch lead time/workday
1-2L	2	6
4L	5	8
6L	5	9
8L	6	10
10L	8	10
12L	8	12
14L	10	15
16L	10	18
18-40L (Up to difficulty)	at least 18	at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

What kinds of quality Raw Materials will be used?

Board Brand	ITEQ, SY, Isola. Rogers, Arlon, Nelco, Taconic, Hitachi, KB,etc
Potion	Rohm & Haas, Atotech, Umicore
Printing Ink	Taiyo, Rongda
Dry Film	Asahi, Dupont, Etertec

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - PCB Circuit Board

A printed circuit board (PCB) mechanically supports and electrically connects electronic components using conductive tracks, pads and other features etched from copper sheets laminated onto a non-conductive substrate.

Components (e.g. capacitors, resistors or active devices) are generally soldered on the PCB. Advanced PCBs may contain components embedded in the substrate.

There are three kinds of PCB, including single sided pcb (one copper layer), double sided pcb (two copper layers)and multi-layer pcb (outer and inner layers).

Conductors on different layers are connected with vias. Multilayer PCBs allow for much higher component density.
