Multilayer 6 Layers OSP Custom Circuit Board Fabrication For Industrial Control System

Name: Multilayer 6 Layers OSP Custom Circuit Board Fabrication For Industrial Control System
Brand: LEFANG
Price: 1 USD

Buy cheap Multilayer 6 Layers OSP Custom Circuit Board Fabrication For Industrial Control System product

Brand Name : LEFANG

Model Number : RM0006L101

Certification : ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000

Place of Origin : Shenzhen,China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal, MoneyGram

Supply Ability : 290, 000 sqm Per Month

Packaging Details : Inner: Vacuum Packing; Dry Packing out Packing

Delivery Time : 2-10 work days

Raw material : Fr - 4

Layer count : 6 Layer

Board thickness : 1.0 mm

Copper thickness : 1 Oz / 35 µm

Surface treatment : OSP

Solder mask : Green

Board size2104 * 105 mm4.56 * 58.83 mm : 112 * 113 mm

Min. Aperture : 0.25 mm

Line Width/Space : 0.1 / 0.1 mm

Contact Now

Multilayer 6 Layers OSP PCB Circuit Board PCB for Industrial Control System

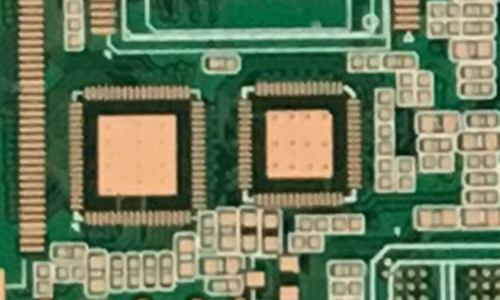

Multilayer 6 layer PCB is easier for our factory, we mainly produce PCB board above 10 layer. This pcb board is with OSP surface treatment, size of 112 * 113 mm but only of 1.0 mm board thickness. Raw material is iteq fr4 board.

Multilayer 6 Layers OSP Custom Circuit Board Fabrication For Industrial Control System

Why choose LEFANG?

-- Lefang provides One-Stop solution to save your cost and time.

Quick Quotation - Competitive factory price is always offered

Free Sample - Sample for free before mass production

Quality Control - Sales Team monitors the production quality and lead time

On Time Delivery - Customize the logistics plan according to customer’s requirement

After-sale Service - Reply to the claim within 24 hours to make sure our customer’s manufacturing

How to get quick quotation?

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc

Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others

Material brand: SY / KB / Rogers (optional)

Material Specification:High Tg / copper based / aluminum based or others (optional)

Board thickness: 0.1 - 6.0 mm

Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )

Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin

Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc

Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE
Board material	Fr - 4
Material brand	KB
Material Specification	Tg 170
Board thickness	1.6 mm
Copper thickness	1 Oz
Surface Treatment	ENIG
Solder mask / sSilk print	Green / White
Board size	100 mm * 100 mm
Quantity	10k

Lead Time

Layer count	Sample lead time/workday	Batch lead time/workday
1-2L	2	6
4L	5	8
6L	5	9
8L	6	10
10L	8	10
12L	8	12
14L	10	15
16L	10	18
18-40L (Up to difficulty)	at least 18	at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

What kinds of quality Raw Materials will be used?

Board Brand	ITEQ, SY, Isola. Rogers, Arlon, Nelco, Taconic, Hitachi, KB,etc
Potion	Rohm & Haas, Atotech, Umicore
Printing Ink	Taiyo, Rongda
Dry Film	Asahi, Dupont, Etertec

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - High Tg PCB

The glass transition temperature (Tg) is an important normative dimension for the base material that determines the temperature at which the resin matrix converts from a glassy, brittle condition into a soft, elastic one.

Normally high Tg refers to high heat resistance in PCB raw material.

The standard Tg for copper clad laminate is between 130 – 140℃. High Tg is generally greater than 170℃, and middle Tg is generally greater than 150℃. Basically the printed circuit board with Tg≥170℃, we call high Tg PCB.

The higher of TG value, the better of pcb high temperature resistance.
