Multilayer Green Solder ENIG Heavy Copper PCB Board With RoHS Compliance

Name: Multilayer Green Solder ENIG Heavy Copper PCB Board With RoHS Compliance
Brand: LEFANG
Price: 1 USD

Buy cheap Multilayer Green Solder ENIG Heavy Copper PCB Board With RoHS Compliance product

Brand Name : LEFANG

Model Number : OT6004L356

Certification : ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000

Place of Origin : Shenzhen,China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal, MoneyGram

Supply Ability : 290, 000 sqm Per Month

Delivery Time : 2-10 work days

Packaging Details : Inner: Vacuum Packing; Dry Packing out Packing

Raw material : Fr - 4

Layer count : 4 Layer

Board thickness : 2.0 mm

Copper thickness : 2 Oz / 70 µm

Surface treatment : Immersion Tin

Solder mask : Green

Board size2104 * 105 mm4.56 * 58.83 mm : 40 mm* 65 mm

Min. Aperture : 0.2 mm

Line Trace Width/Space : 0.1 / 0.075 mm

Contact Now

Multilayer Green Solder ENIG Thick Copper PCB Board with RoHS Compliance

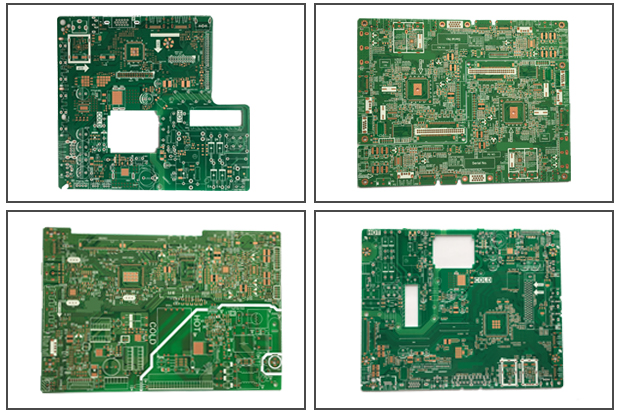

Nowadays, thick copper PCBs are often seen in various applications. This kind of PCB facilitate high-current industrial applications and battery chargers. The copper thickness of the PCB board is 2 OZ, with surface treatment of Immersion Tin.

Multilayer Green Solder ENIG Heavy Copper PCB Board With RoHS Compliance

How to get quick quotation?

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc

Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others

Material brand: SY / KB / Rogers (optional)

Material Specification:High Tg / copper based / aluminum based or others (optional)

Board thickness: 0.1 - 6.0 mm

Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )

Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin

Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc

Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE
Board material	Fr - 4
Material brand	KB
Material Specification	Tg 170
Board thickness	1.6 mm
Copper thickness	1 Oz
Surface Treatment	ENIG
Solder mask / sSilk print	Green / White
Board size	100 mm * 100 mm
Quantity	10k

Technical Data

Item	Details
Max layer count	20 L
Max board thickness	6.0 mm
Max aspect ratio	10 : 1
Max copper thickness	6 OZ
Max dimension	600 * 700mm
Min thickness of 4 layers PCB	0.4 mm
Min hole / pad	0.15 / 0.35mm
Hole location accuracy	+ / - 0.05mm
PTH hole tolerance	+ / - 0.05mm
Min line width and line space	0.065 / 0.065mm
Surface treatment	HASL / HASL lead free, OSP Immersion gold/silver/tin, gold plating (hard gold and soft gold), silver plating, tin plating, platinum plating, carbon ink, ENEPIG (electroless nickel - electroless palladium - immersion gold)

Lead Time

Layer count	Sample lead time/workday	Batch lead time/workday
1-2L	2	6
4L	5	8
6L	5	9
8L	6	10
10L	8	10
12L	8	12
14L	10	15
16L	10	18
18-40L (Up to difficulty)	at least 18	at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

How many advanced automated equipments do we have?

-- We have spent massively on purchasing below advanced automated production equipments.

Equipment Name	Plant in Shenzhen	Plant in Dongguan
CCD exposure machine	8	12
AOI test machine	6	8
Mechanical drilling rig	26	53
Automatic edge finishing machine	2	2
Pressing machine	2	2
VCP	0	2
Electroplating line	1	2
CNC routing machine	12	12
Automatic tester	10	16

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - Single Sided PCB
Single sided PCB contains only one layer of conductive material, where components are focused on one side, and the other side of the wire is concentrated.
Single sided PCB are the best choice for low density designs. They are easily designed and quickly manufactured to serve as the most cost effective platform in the industry.
For surface finishes, single sided boards are available for Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL), with operating temperatures range from 130℃ to 230℃.
