Durable 2 Layers LF HASL Heavy Copper PCB Manufacturing UL Approved

Name: Durable 2 Layers LF HASL Heavy Copper PCB Manufacturing UL Approved
Brand: LEFANG
Price: 1 USD

Buy cheap Durable 2 Layers LF HASL Heavy Copper PCB Manufacturing UL Approved product

Brand Name : LEFANG

Model Number : OT6002L360

Certification : ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000

Place of Origin : Shenzhen,China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 290, 000sqm Per Month

Delivery Time : 2-10 work days

Packaging Details : Inner: Vacuum Packing; Dry Packing out Packing

Base Material/ Dielectric : FR - 4

Layer : 2 Layers

Surface treatment : HASL

Board thickness : 1.6mm

Solder Mask : Green

Min. Aperture : 0.2 mm

Line Width/Spacing : 0.2 / 0.2 mm

Size : 13.2 * 11 mm

Copper Thickness : 70 um / 2 oz

Contact Now

UL Approved 2 Layers Double Sided LF HASL Thick Copper PCB Manufacturing

For the heavy copper board manufacturing, LEFANG applies to RoHS and UL compliance. The copper thickness of this thick copper PCB is 2 OZ / 70 µm and the board thickness is 1.6 mm with green solder mask. And the surface treatment is LF HASL, which help to protect the PCB bared copper from oxidation. While the minimum aperture and the line width / Space are 0.2 mm.

Durable 2 Layers LF HASL Heavy Copper PCB Manufacturing UL Approved

How to get quick quotation?

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc

Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others

Material brand: SY / KB / Rogers (optional)

Material Specification:High Tg / copper based / aluminum based or others (optional)

Board thickness: 0.1 - 6.0 mm

Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )

Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin

Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc

Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE
Board material	Fr - 4
Material brand	KB
Material Specification	Tg 170
Board thickness	1.6 mm
Copper thickness	1 Oz
Surface Treatment	ENIG
Solder mask / sSilk print	Green / White
Board size	100 mm * 100 mm
Quantity	10k

Technical Data

Item	Details
Max layer count	20 L
Max board thickness	6.0 mm
Max aspect ratio	10 : 1
Max copper thickness	6 OZ
Max dimension	600 * 700mm
Min thickness of 4 layers PCB	0.4 mm
Min hole / pad	0.15 / 0.35mm
Hole location accuracy	+ / - 0.05mm
PTH hole tolerance	+ / - 0.05mm
Min line width and line space	0.065 / 0.065mm
Surface treatment	HASL / HASL lead free, OSP Immersion gold/silver/tin, gold plating (hard gold and soft gold), silver plating, tin plating, platinum plating, carbon ink, ENEPIG (electroless nickel - electroless palladium - immersion gold)

Lead Time

Layer count	Sample lead time/workday	Batch lead time/workday
1-2L	2	6
4L	5	8
6L	5	9
8L	6	10
10L	8	10
12L	8	12
14L	10	15
16L	10	18
18-40L (Up to difficulty)	at least 18	at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

What kinds of quality Raw Materials will be used?

Board Brand	ITEQ, SY, Isola. Rogers, Arlon, Nelco, Taconic, Hitachi, KB,etc
Potion	Rohm & Haas, Atotech, Umicore
Printing Ink	Taiyo, Rongda
Dry Film	Asahi, Dupont, Etertec

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - Medical Devices
Electronics contributes significantly to today's health-care industry like in diagnostic, monitoring and treatment devices. Because of the health implications associated with them, medical PCBs are held to higher standards than most other PCB types.
PCBs within the medical industry are highly specialized to satisfy the restriction of medical devices. In many medical applications, requirements like size and appearance are existed for an implant or emergency room monitor. For this reason, medical PCBs tend to be specialty high-density interconnect PCBs (HDI PCBs) or made with flexible base materials, allowing PCB to flex during use.

Product Tags:

copper clad printed circuit board

through hole pcb

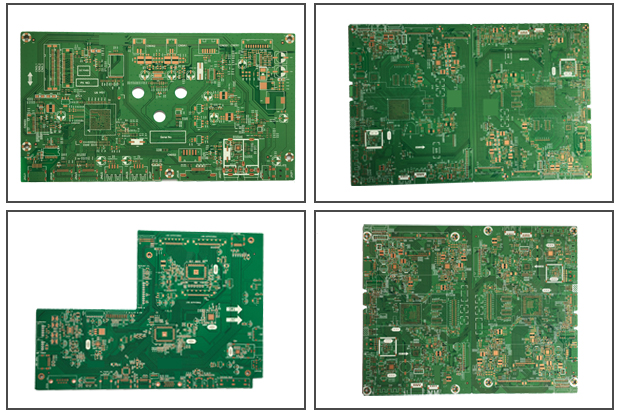

Durable 2 Layers LF HASL Heavy Copper PCB Manufacturing UL Approved Images
