12 OZ Double Sided Heavy Copper PCB Circuit Board With Lead Free HASL 0.8 Mm Aperture

Name: 12 OZ Double Sided Heavy Copper PCB Circuit Board With Lead Free HASL 08 Mm Aperture
Brand: LEFANG
Price: 1 USD

Buy cheap 12 OZ Double Sided Heavy Copper PCB Circuit Board With Lead Free HASL 0.8 Mm Aperture product

Brand Name : LEFANG

Model Number : RM6002L382

Certification : ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000

Place of Origin : Shenzhen,China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 290, 000sqm Per Month

Packaging Details : Inner: Vacuum Packing; Dry Packing out Packing

Delivery Time : 2-10 work days

Base Material/ Dielectric : FR - 4

Layer : 2 Layers

surface treatment : Lead Free HASL

Copper Thickness : 12 OZ

Solder Mask : Green

Min. Aperture : 0.8 mm

Line Width/Spacing : 1.0 / 1.0 mm

Size : 145*89 mm

Board thickness : 1.6 mm

Contact Now

12 OZ Double Sided Thick Copper PCB Circuit Board with Lead Free HASL

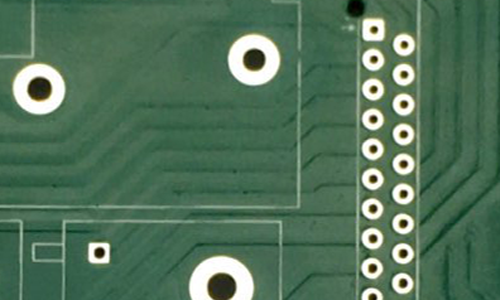

The Thick Copper PCB Board is made with FR - 4 board raw material. And the copper thickness is 12 OZ / 420 µm while the board thickness 1.6 mm. And the specificaton of the heavy copper printed circuit board is 145*89 mm.

12 OZ Double Sided Heavy Copper PCB Circuit Board With Lead Free HASL 0.8 Mm Aperture

How to get quick quotation?

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc

Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others

Material brand: SY / KB / Rogers (optional)

Material Specification:High Tg / copper based / aluminum based or others (optional)

Board thickness: 0.1 - 6.0 mm

Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )

Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin

Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc

Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE
Board material	Fr - 4
Material brand	KB
Material Specification	Tg 170
Board thickness	1.6 mm
Copper thickness	1 Oz
Surface Treatment	ENIG
Solder mask / sSilk print	Green / White
Board size	100 mm * 100 mm
Quantity	10k

Technical Data

Item	Details
Max layer count	20 L
Max board thickness	6.0 mm
Max aspect ratio	10 : 1
Max copper thickness	6 OZ
Max dimension	600 * 700mm
Min thickness of 4 layers PCB	0.4 mm
Min hole / pad	0.15 / 0.35mm
Hole location accuracy	+ / - 0.05mm
PTH hole tolerance	+ / - 0.05mm
Min line width and line space	0.065 / 0.065mm
Surface treatment	HASL / HASL lead free, OSP Immersion gold/silver/tin, gold plating (hard gold and soft gold), silver plating, tin plating, platinum plating, carbon ink, ENEPIG (electroless nickel - electroless palladium - immersion gold)

Lead Time

Layer count	Sample lead time/workday	Batch lead time/workday
1-2L	2	6
4L	5	8
6L	5	9
8L	6	10
10L	8	10
12L	8	12
14L	10	15
16L	10	18
18-40L (Up to difficulty)	at least 18	at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

What kinds of test function will be offered?

AOI (Automated Optical Inspection)	Impedance control
Automatic short-circuit testing	Metallographic microscope
RoHS detector	Fly probe/ fixture mold
Dielectric tester	Visual inspection

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - Thick copper PCB

Electronics are used in demanding environments and operate at higher currents in these days.

Thick copper PCB can help conduct heat away from components and withstand high current, satisfying the market of power conversion module boards which is used in automobile electronics and electric equipment.

Heavy copper PCBs means copper conductors 5 oz/ft2 – 19 oz/ft2 in inner and/or outer layers; sometimes defined as more than 4 oz per square foot (ft2).

These boards can be manufactured in a smaller footprint as they can contain multiple weights of copper on the same circuit layers.
