PCB Circuit Board Multi-layer Printed Circuit for Automotive Sensor

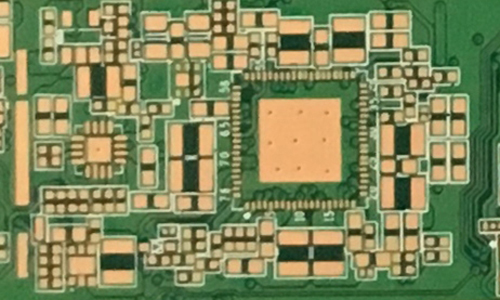

The layer count of the Automotive Sensor PCB Circuit Board is 6 Layers, and it was made with FR - 4 board material, with 1 Oz / 35 µm copper thickness. Also, the board size of this PCB Circuit Board is 116 * 66 mm, and the minimum aperture is 0.25 mm.
What We Can Do for You?
With over 18 years experience, we offer OEM & ODM PCB Layout, PCB Design, PCB manufacturing and
PCB Assembly in single-sided PCB Board, double-sided PCB and Multilayer Printed Circuit Board service to
our customers, with total production capacity of 290,000 sqm/month.
How to get quick quotation?
| Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc |
| Step 2 Also please provide us the below details for quick quotation: |
|
Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others
|
| Material brand: SY / KB / Rogers (optional) |
| Material Specification:High Tg / copper based / aluminum based or others (optional) |
| Board thickness: 0.1 - 6.0 mm |
| Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um ) |
| Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin |
| Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc |
| Board size and quantity |
|
If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.
|
|
SAMPLE:
|
|
Board Basic Info - SAMPLE
|
|
Board material
|
Fr - 4
|
|
Material brand
|
KB
|
|
Material Specification
|
Tg 170
|
|
Board thickness
|
1.6 mm
|
|
Copper thickness
|
1 Oz
|
|
Surface Treatment
|
ENIG
|
|
Solder mask / sSilk print
|
Green / White
|
|
Board size
|
100 mm * 100 mm
|
|
Quantity
|
10k
|
|
Lead Time
| Layer count |
Sample lead time/workday |
Batch lead time/workday |
| 1-2L |
2 |
6 |
| 4L |
5 |
8 |
| 6L |
5 |
9 |
| 8L |
6 |
10 |
| 10L |
8 |
10 |
| 12L |
8 |
12 |
| 14L |
10 |
15 |
| 16L |
10 |
18 |
| 18-40L (Up to difficulty) |
at least 18 |
at least 24 |
| P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays |
Why you can trust our products?
-- What LEFANG's vision is to Make Our Customer's Products Better, so we try our best to fulfill the quality control
system andenvironmental management system. Our approved certification are as below:
| ISO9001:2008 |
ISO14001:2004 |
| ISO/TS16949:2009 |
OHSAS18000 |
| UL |
RoHS |
| QC080000 |
CQC |
Now send us your inquiry, and you will be replied within 8 hours!
Little knowledge - Metal Core PCB
Metal core PCB's are thermal management circuit boards which use a base metal material as the heat dissipater part of the PCB. They are used in high heat generating application like LED lighting in the area of high power LED lighting, Automotive Interior, Exterior Lighting, Parking Garage Lighting, LED spot light etc. The metal core can be aluminum (aluminum core PCB) and copper (copper core PCB). The most common used aluminum core PCB is the thermal conductivity at 1W/MK and 2W/MK.
