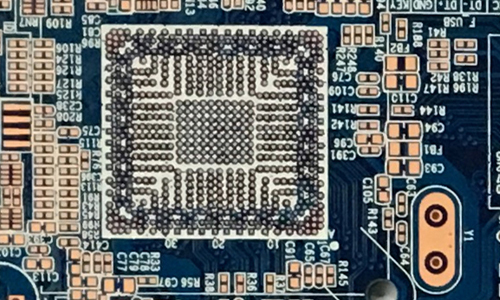

Medical ECG Equipment High Frequency PCB Board Professional PCB Manufacturing

Name: Medical ECG Equipment High Frequency PCB Board Professional PCB Manufacturing
Brand: LEFANG
Price: 1 USD

Buy cheap Medical ECG Equipment High Frequency PCB Board Professional PCB Manufacturing product

Brand Name : LEFANG

Model Number : RM0004L072

Certification : ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000

Place of Origin : Shenzhen,China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal, MoneyGram

Supply Ability : 290, 000 sqm Per Month

Packaging Details : Inner: Vacuum Packing; Dry Packing out Packing

Delivery Time : 2-10 work days

Raw material : Fr - 4

Layer count : 4 Layer

Board thickness : 1.0 mm

Copper thickness : 1 Oz / 35 µm

Surface treatment : OSP

Solder mask : Blue

Board size : 190 * 170 mm

Min. Aperture : 0.3 mm

Line Trace Width/Space : 0.1 / 0.1 mm

Contact Now

Medical ECG Equipment Printed Circuit Board High Frequency PCB for Professional Monitoring Taconic

The high frequency PCB is applied for medical equipment, which is a 4 layers printed circuit board with 1.0 mm board thickness. Nowadays, high frequency PCB is becoming more and more popular as it could help to provide the faster signal flow rates to various electronic components.

Medical ECG Equipment High Frequency PCB Board Professional PCB Manufacturing

Why choose LEFANG?

-- Lefang provides One-Stop solution to save your cost and time.

Quick Quotation - Competitive factory price is always offered

Free Sample - Sample for free before mass production

Quality Control - Sales Team monitors the production quality and lead time

On Time Delivery - Customize the logistics plan according to customer’s requirement

After-sale Service - Reply to the claim within 24 hours to make sure our customer’s manufacturing

How to get quick quotation?

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc

Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others

Material brand: SY / KB / Rogers (optional)

Material Specification:High Tg / copper based / aluminum based or others (optional)

Board thickness: 0.1 - 6.0 mm

Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )

Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin

Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc

Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE
Board material	Fr - 4
Material brand	KB
Material Specification	Tg 170
Board thickness	1.6 mm
Copper thickness	1 Oz
Surface Treatment	ENIG
Solder mask / sSilk print	Green / White
Board size	100 mm * 100 mm
Quantity	10k

Lead Time

Layer count	Sample lead time/workday	Batch lead time/workday
1-2L	2	6
4L	5	8
6L	5	9
8L	6	10
10L	8	10
12L	8	12
14L	10	15
16L	10	18
18-40L (Up to difficulty)	at least 18	at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

How to guarantee our high quality products?

-- We employ 70 professional engineers to ensure our high quality products.

Department	Headcount
Electronic Eng.	13
R&D Eng.	15
PE Eng.	10
CAM Eng.	26
MI Eng.	6

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - Double Sided PCB

Double Sided PCBs also known as Double-Sided Plated Thru or DSPT, which are the gateway to higher technology applications compared to single sided PCB.

Double Sided PCB allow for the routing of traces around each other by jumping between a top and bottom layer by way of vias.

The ability to cross paths from top to bottom greatly increasing the circuit designer's flexibility in circuits designing and lends itself to greatly increased circuit densities.
